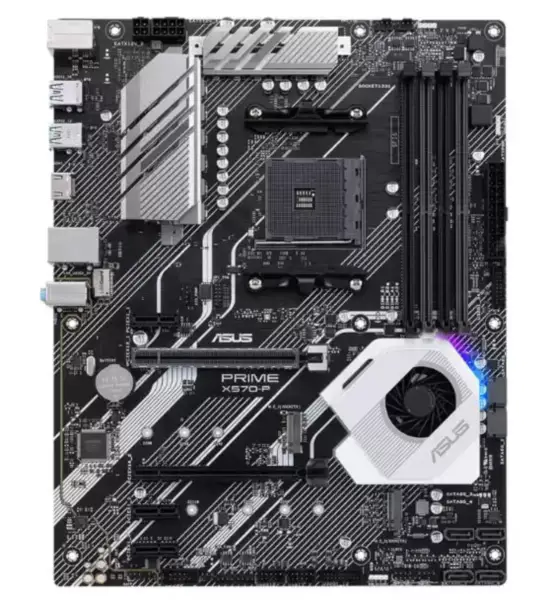

ASUS PRIME X570-P desktop motherboard with AM4 socket, AMD X570 chipset, 4 x DDR4 up to 128 GB, 2 x M.2.
| Chipset | AMD X570 |
|---|---|
| Graphic | Integrated Graphics in AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors,VGA output support: HDMI port Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| Expansion Slots – Multi-GPU Support | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors,Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors,AMD Ryzen 5000 Series/ 3000 Series Desktop Processors,AMD Ryzen 3000 G-Series / 2000 G-Series Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode),AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| Storage | AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:,AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H,ASUS LAN Guard |
| Audio | Realtek S1200A8-Channel High Definition Audio CODEC Premium Japanese-made audio capacitors Supports: Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Shielding Dedicated audio PCB layers Front panel audio connector (AAFP),Audio Feature:, Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:, The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen 5000 Series/ 3000 Series Desktop Processors. 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) 4 x USB 3.2 Gen 1 port(s) (4 at mid-board),AMD X570 chipset: 5 x USB 2.0 port(s) (2 at back panel, 3 at mid-board) |
| Rear Panel I/O – Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) |
| Internal I/O Connectors – Internal I/O Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x PCH_FAN (1 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| BIOS & Features – Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor,12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| Desktop Motherboard Specs | |
| CPU Brand | AMD |
| CPU Socket | AM4 |
| Chipset | X570 |
| Form Factor | ATX |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Max Memory | 128 GB |
| M.2 Slots | 2 |
| Wi-Fi | No |
