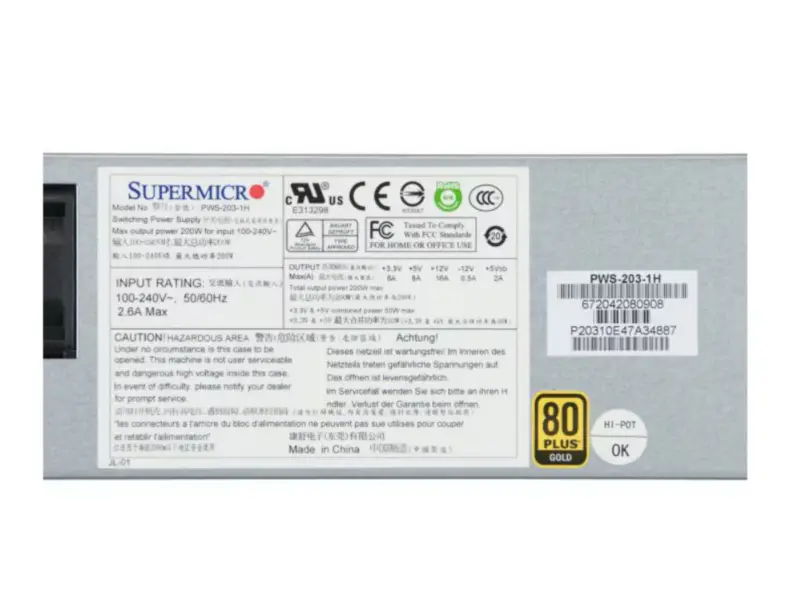

Supermicro PWS-203-1H Power Supply

Name: Supermicro PWS-203-1H Power Supply
SKU: EMP0071656
Price: 62 USD
Availability: InStock

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

Specifications

Total Power Output	200W
Type	Single
Type of Power Supply	Power Supply
Form Factor	1U
Dimension (W x H x L)	76 x 40.3 x 192 mm
+5V	8A
+12V	16A
+3.3V	8A
5V Standby	2A
Input Voltage Range	100-240V
Input Frequency Range	50-60Hz
Input Current Range	2.6A Max
Output Type	20Pin ATX Cable Output
8Pin / 4Pin (12V) Connector	8-Pin
PFC	Yes
Voltage / Current	No
Energy Efficiency	91% Peak
80 Plus Certification	80 Plus Gold
Validated Systems	AS-5019D-FTN4, SYS-1019C-HTN2, SYS-5018A-FTN4, SYS-5018A-TN7B, SYS-5018D-FN4T, SYS-5018D-FN8T, SYS-5019A-FN5T, SYS-5019A-FTN4, SYS-5019A-FTN10P, SYS-5019C-FL, SYS-5019D-4C-FN8TP, SYS-5019D-FN8TP, SYS-5019S-L
Validated Chassis	CSE-504-203B, CSE-505-203B, CSE-510-203B, CSE-510T-203B, CSE-512-203B
